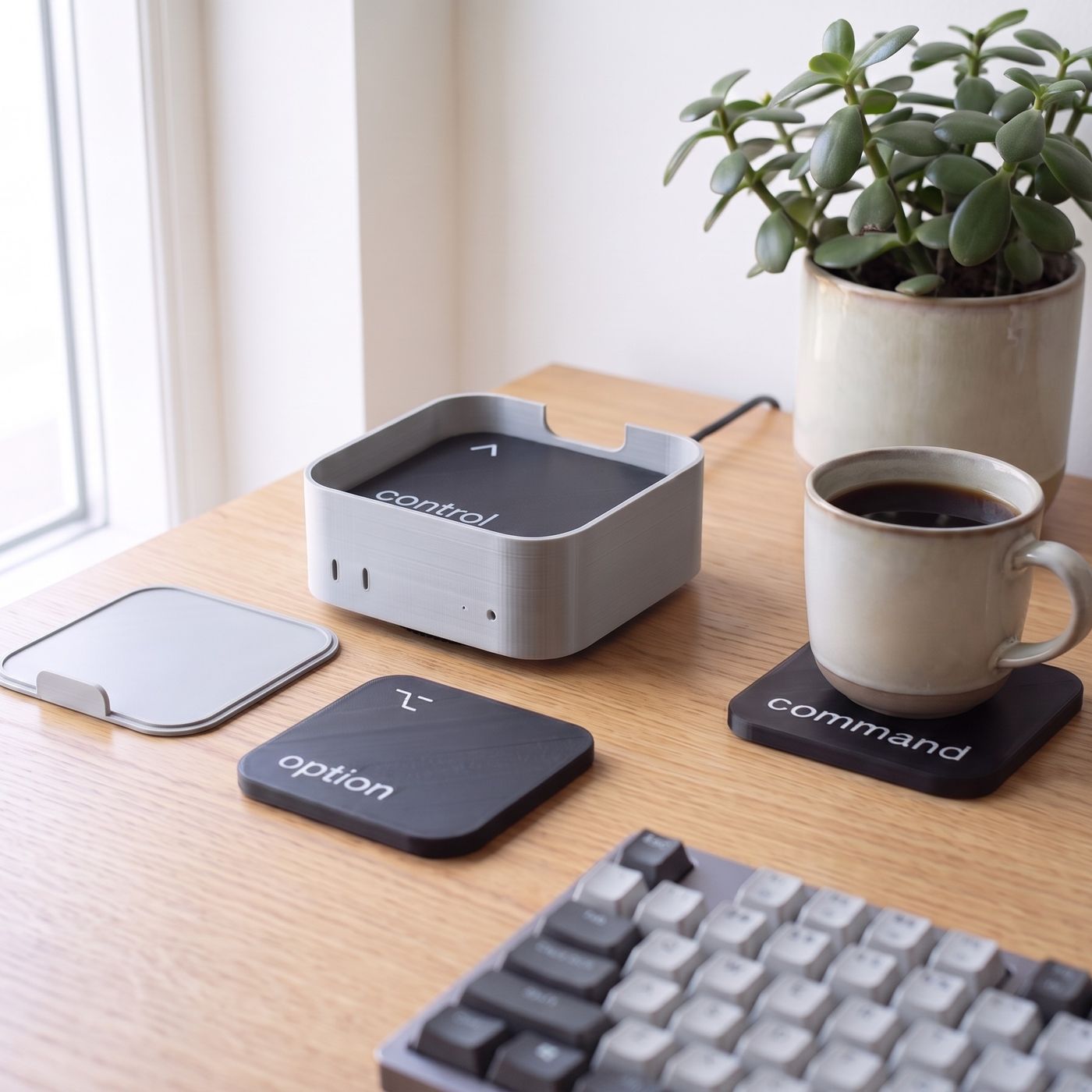

The Mac mini holder open on an oak desk with its cap lying beside it, the control coaster still inside, the option coaster on the desk and a cup of coffee on the command coaster.

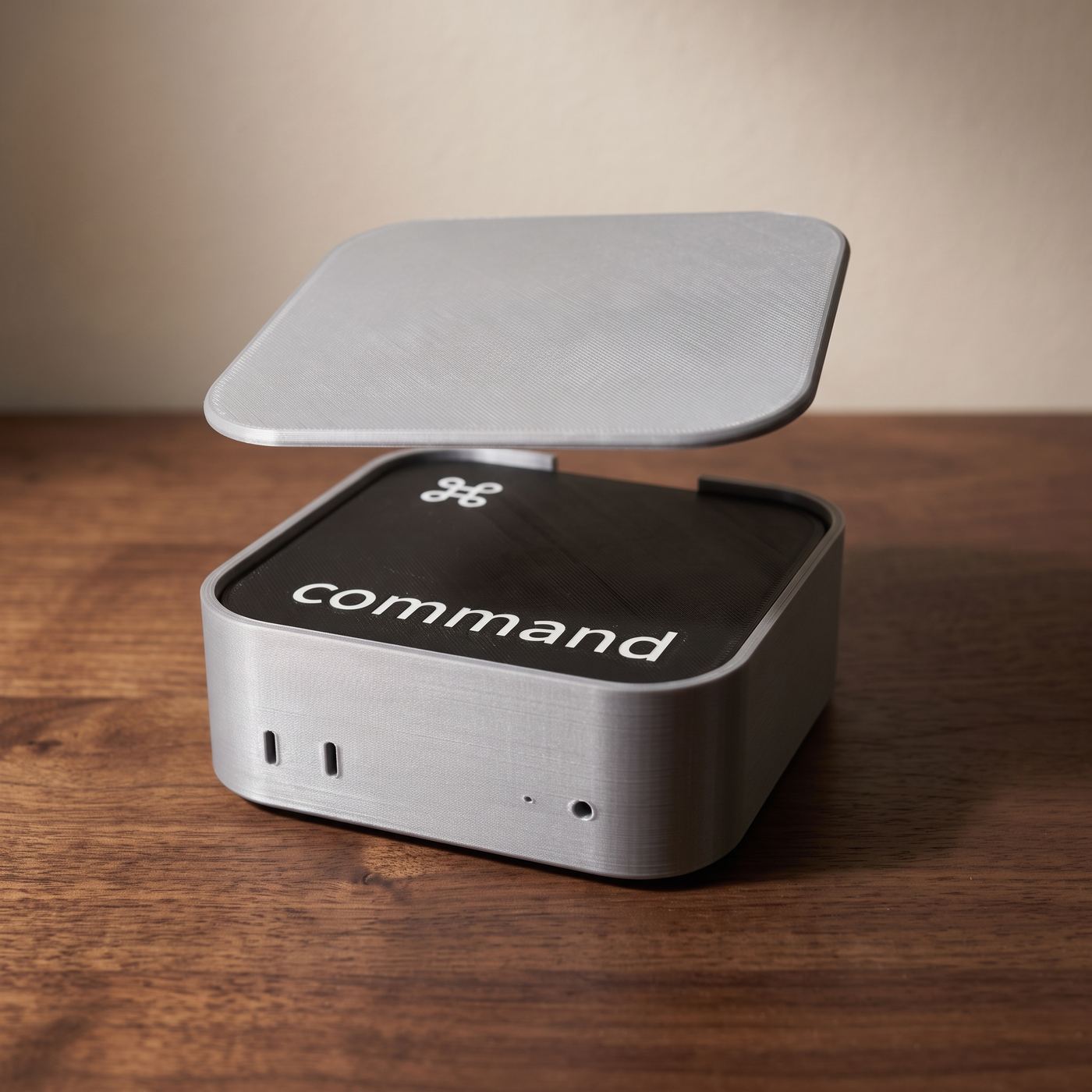

The Mac mini holder on a walnut desk with its cap lifted off and hanging above it, the stack of coasters inside with command on top.

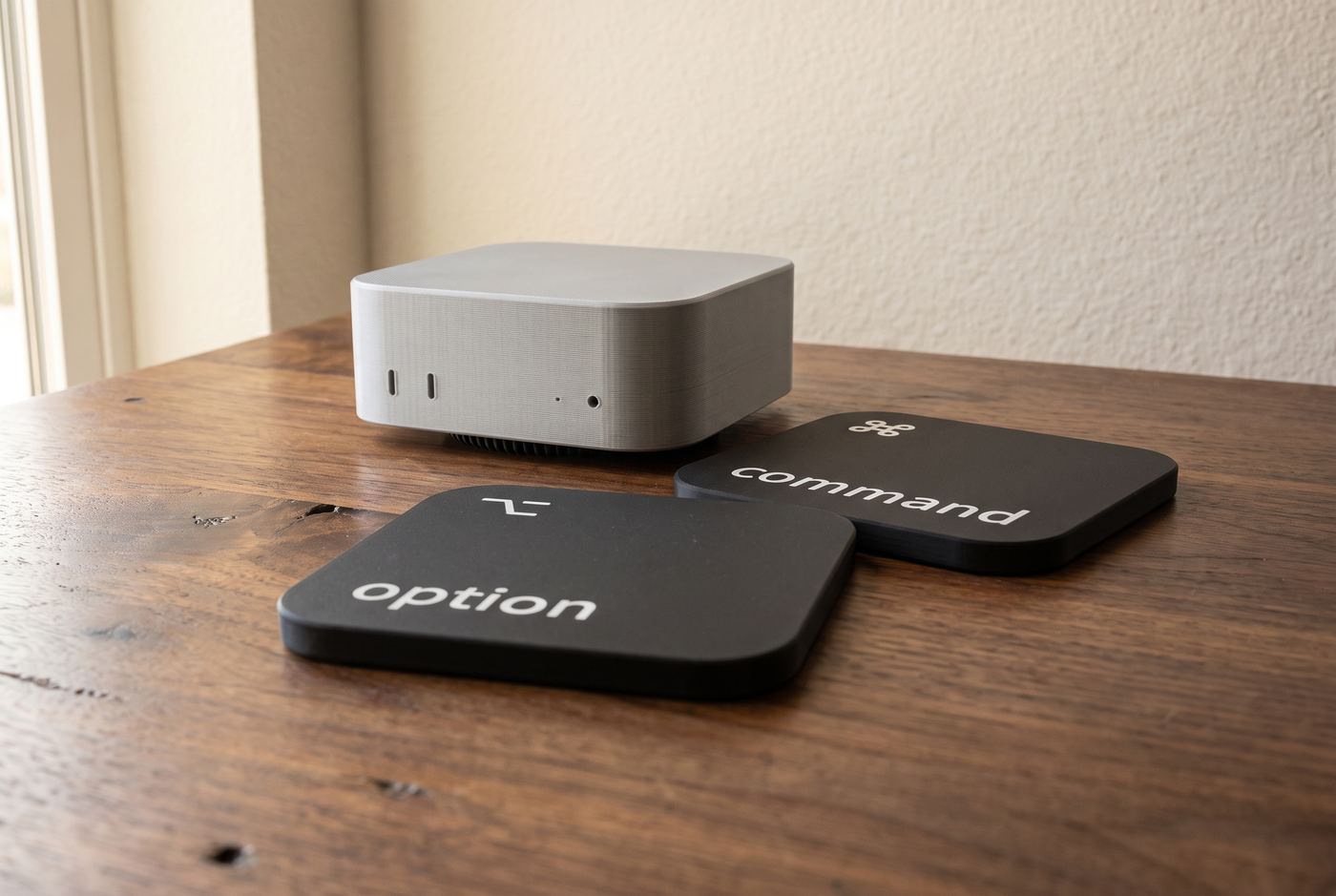

The holder with its cap on, and the command and option coasters lying on the desk in front of it.

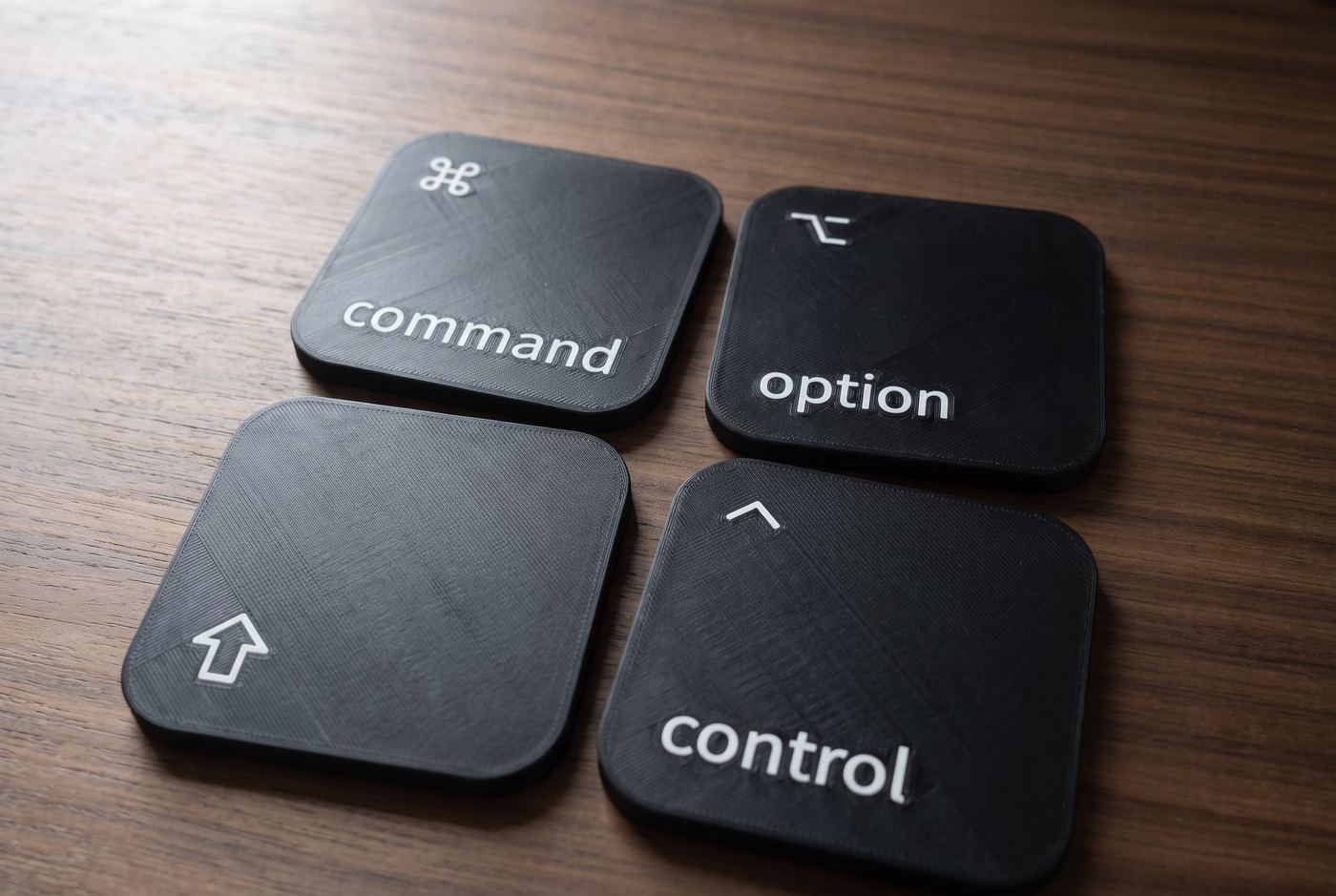

The four coasters two by two on a walnut desk: command, option, shift and control.

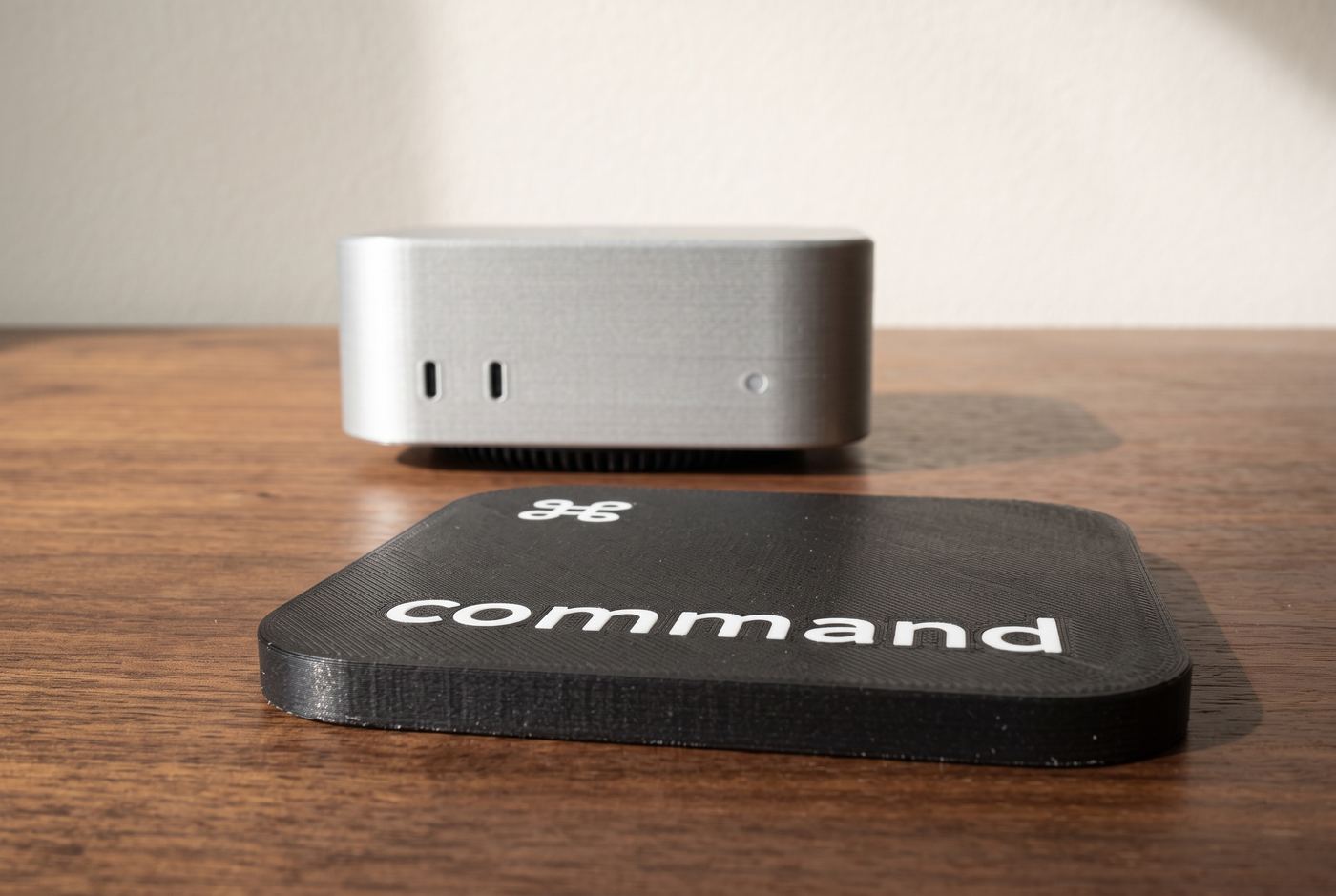

The command coaster close up, with the holder out of focus behind it.

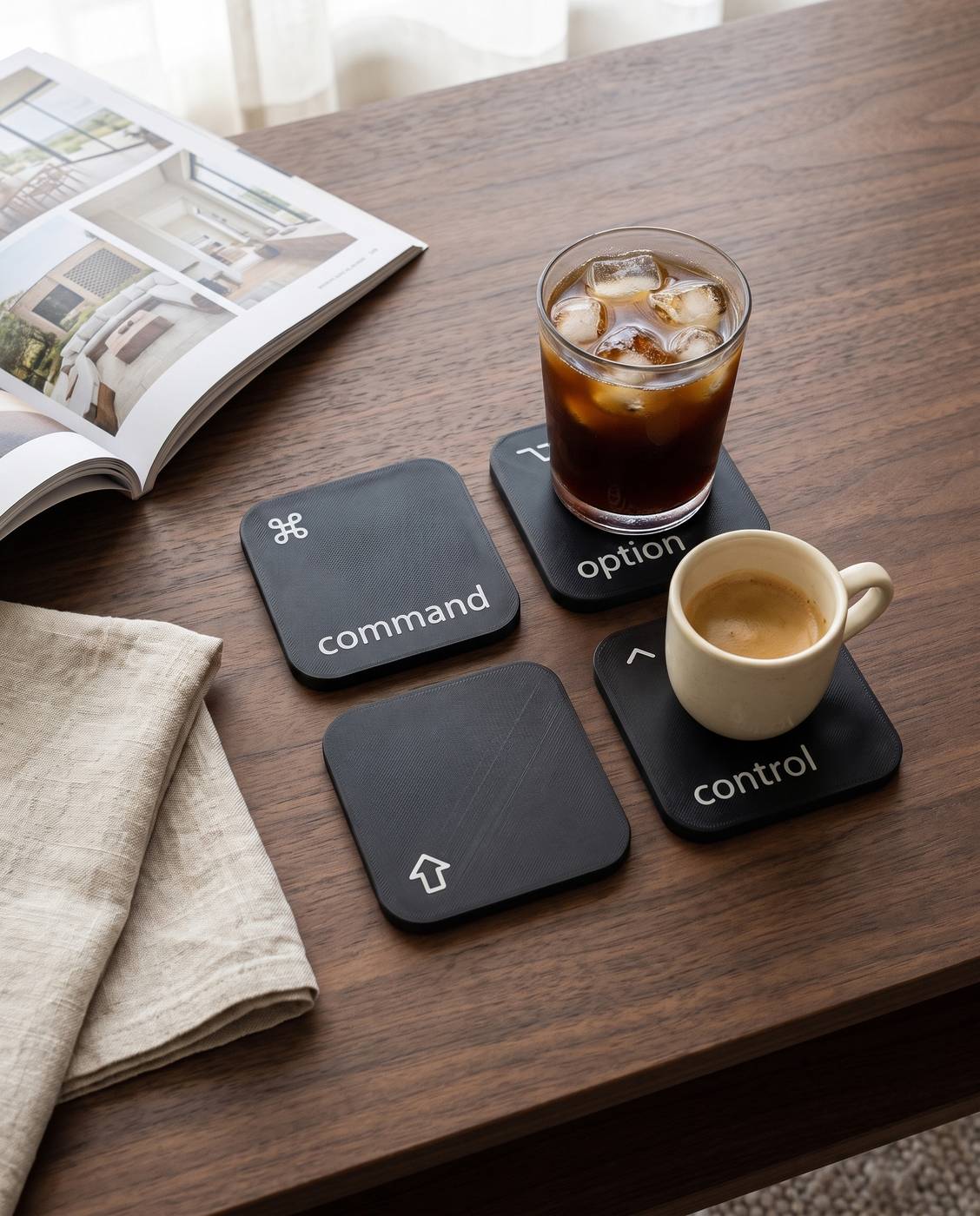

The four coasters on a walnut coffee table, an iced coffee on option and an espresso on control.

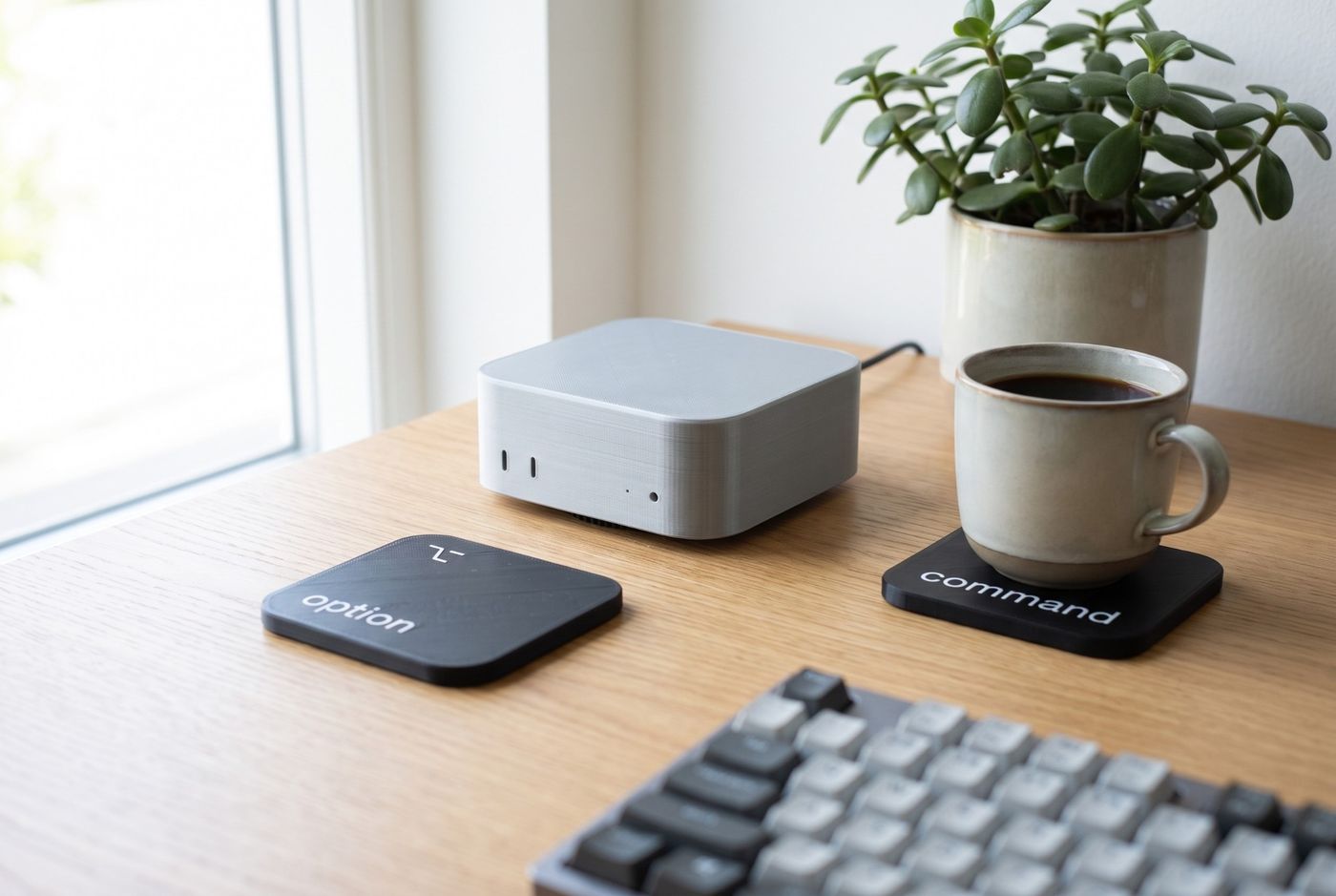

The Mac mini holder on an oak desk by a window, the option coaster in front of it and a cup of coffee on the command coaster, a keyboard in the corner.

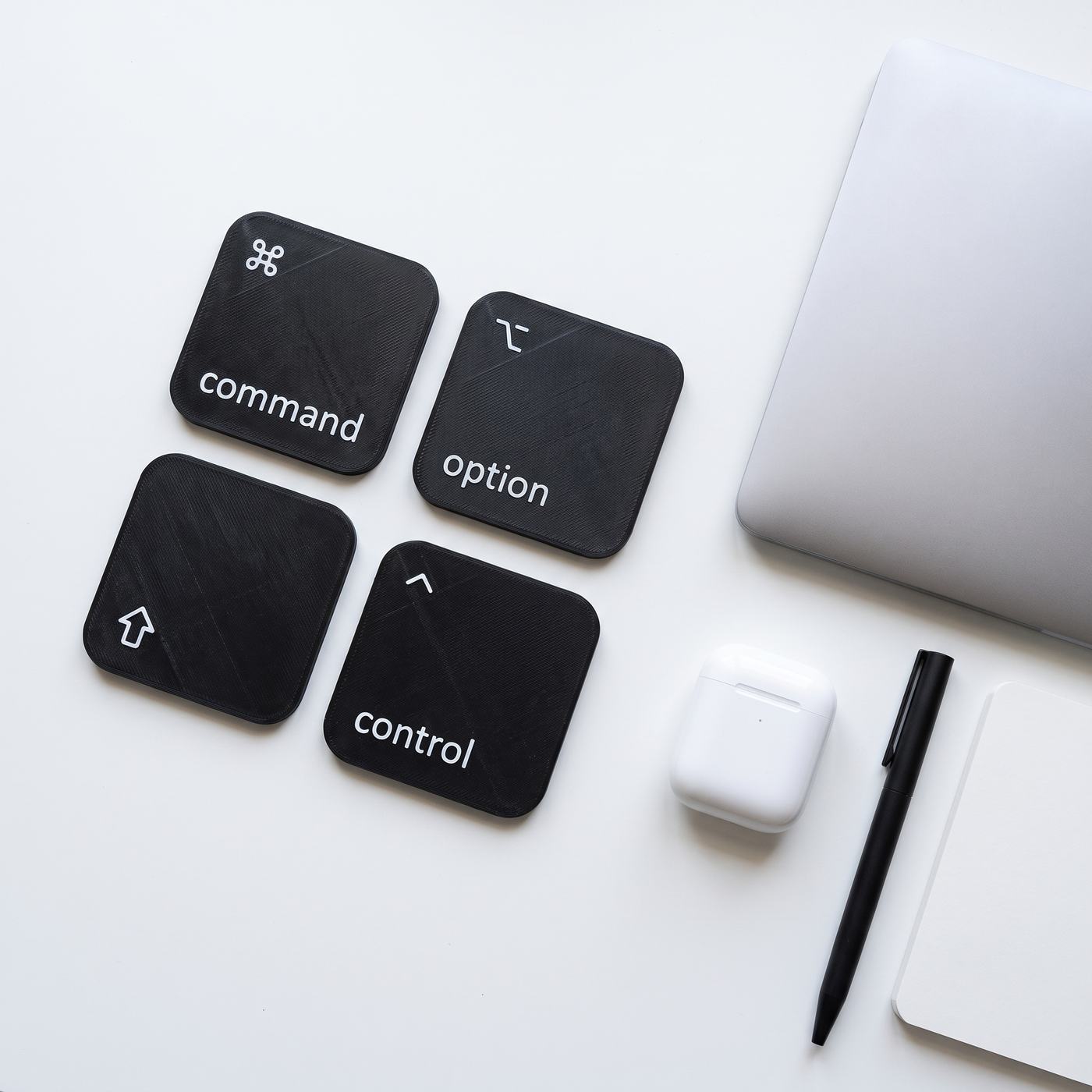

From above: the four coasters two by two on a white desk beside a laptop, earbuds and a pen.
The Mac mini holder on an oak desk by a window, the option coaster in front of it and a cup of coffee on the command coaster, a keyboard in the corner.

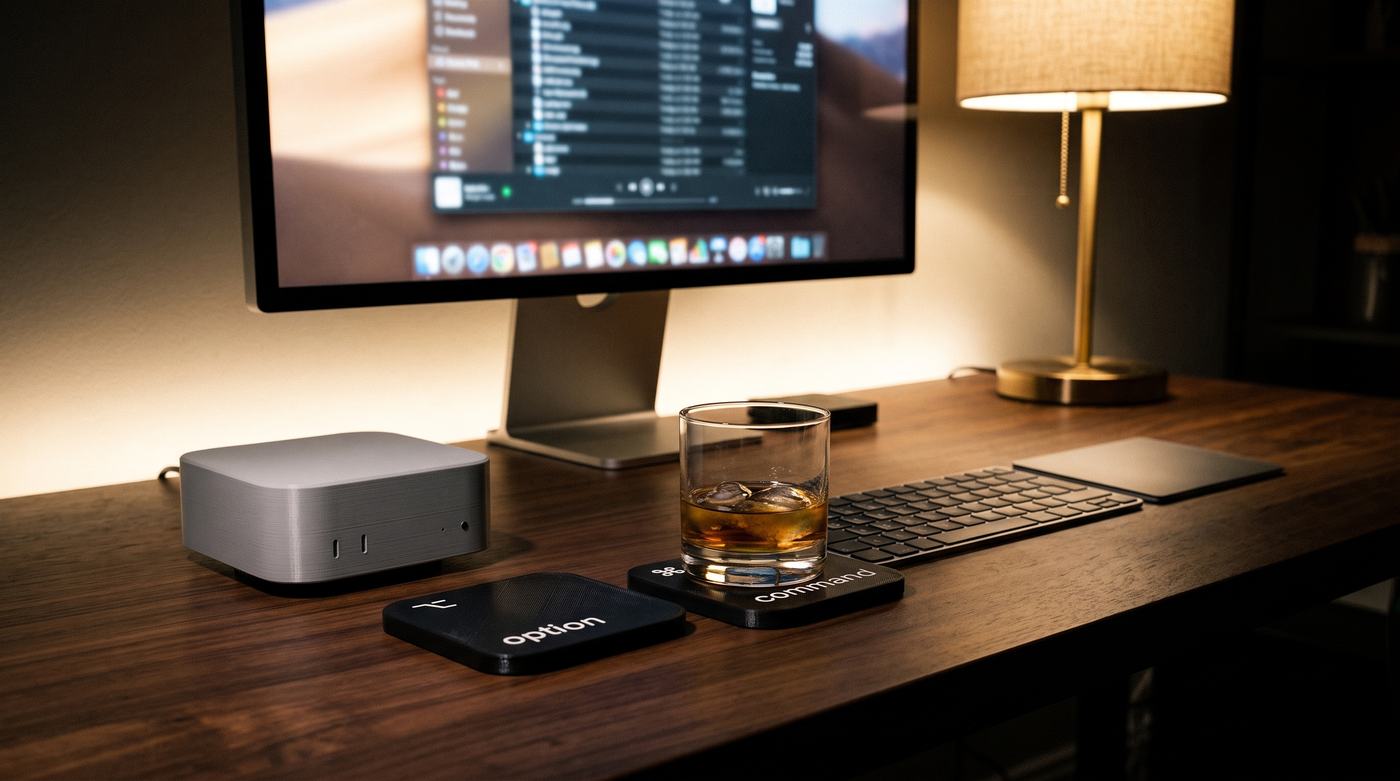

At night: the holder and two coasters on a walnut desk under a monitor and a brass lamp, a glass of whisky on command.
The Mac mini holder on an oak desk by a window, the option coaster in front of it and a cup of coffee on the command coaster, a keyboard in the corner.

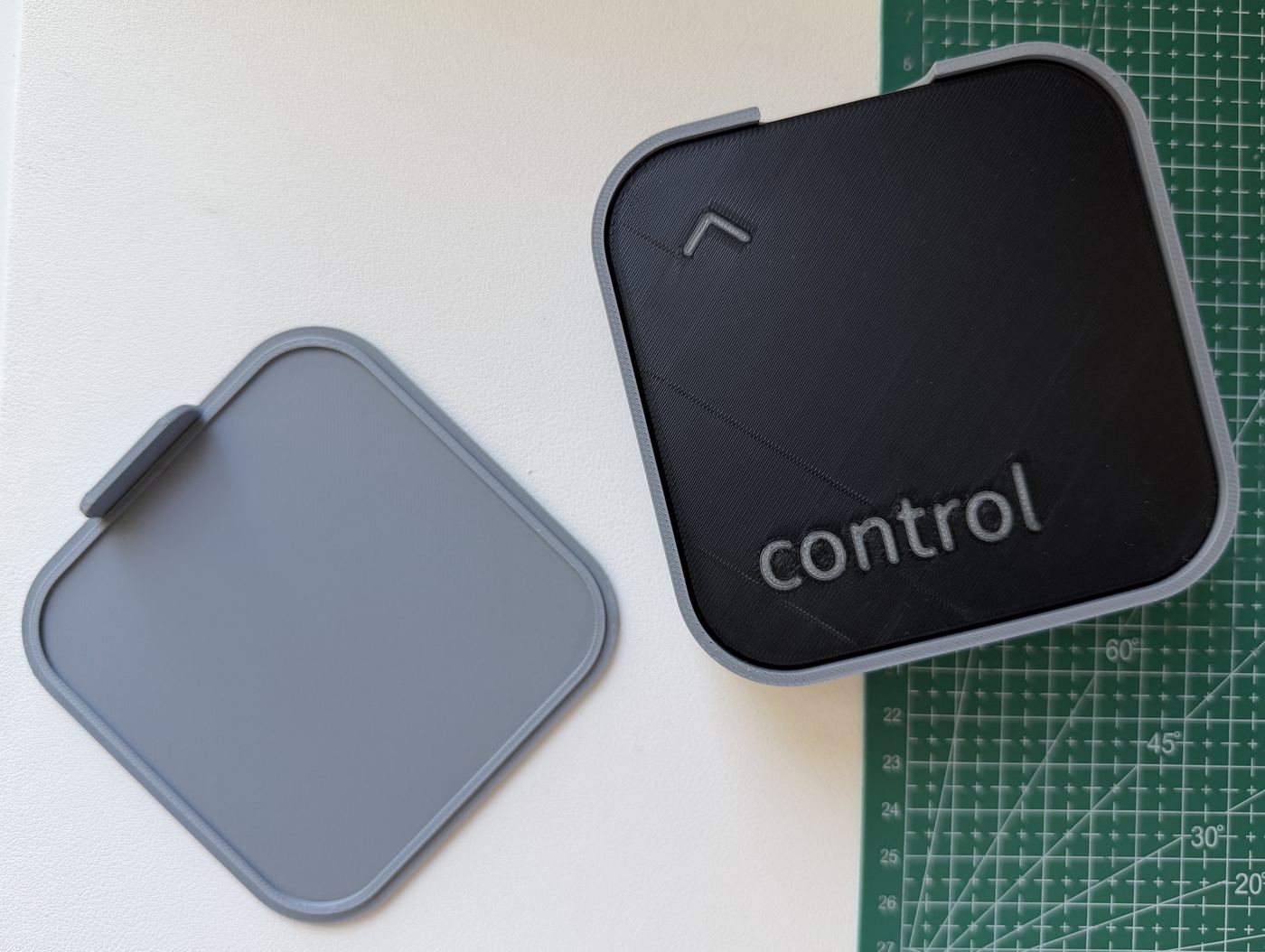

Our print from above: the holder open with the control coaster on top of the stack, and the cap beside it showing its plug and tab.

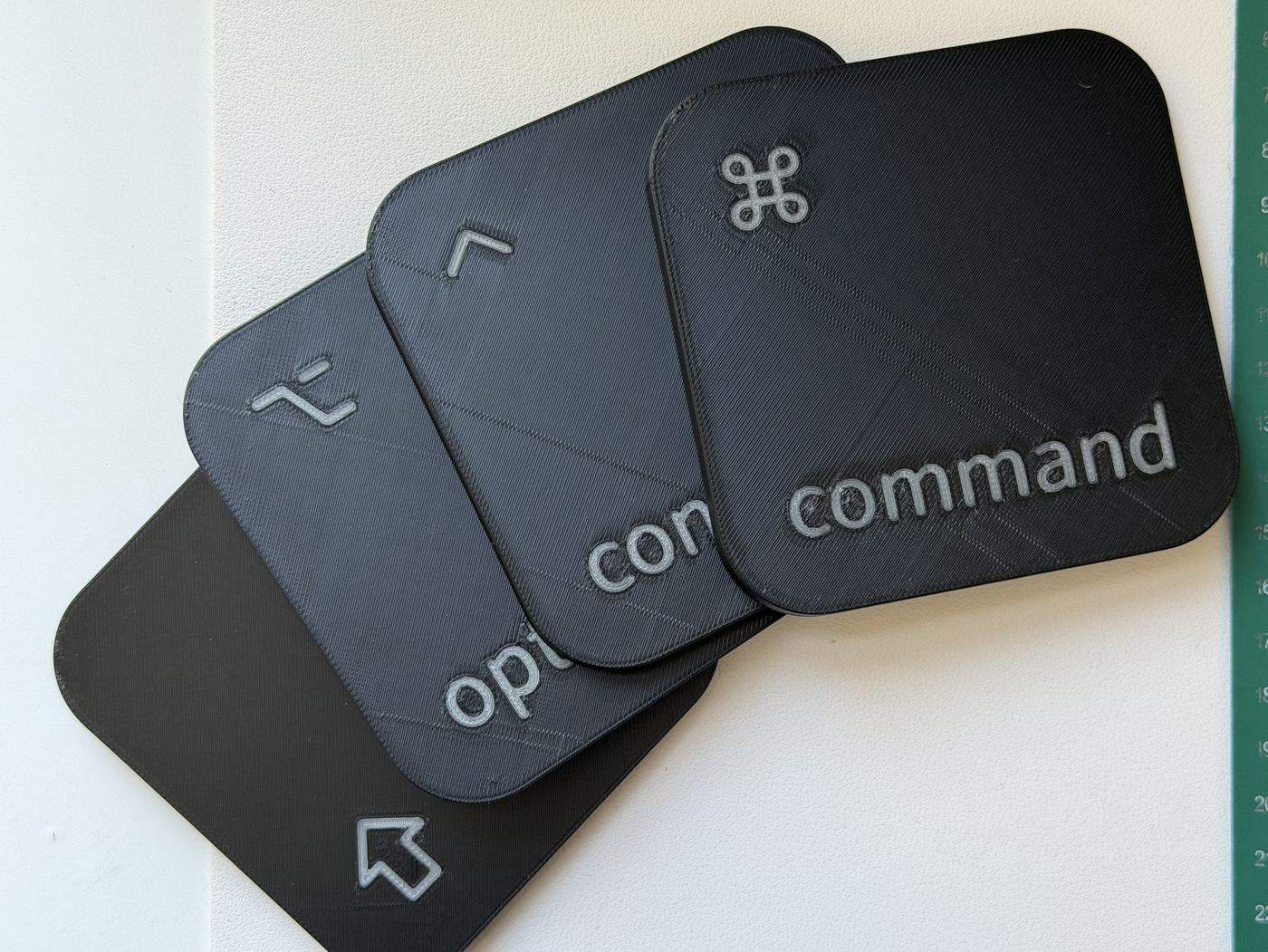

Our printed coasters fanned out on a cutting mat: command, control, option and shift, black with silver legends.

Mac mini Coaster Set V1

Four Mac modifier keys as 3D printed coasters, and a Mac mini that holds them

Still warm Available on MakerWorld

Command, Option, Shift and Control as coasters, and a Mac mini to keep them in. The keys stack inside it, a cap goes on top, and it sits on the desk looking like the computer it isn't.

Size
102 × 102 × 43 mm
Filament
≈ 217 g
Parts
Seven, on three plates
Holds
The four coasters, stacked
Hardware
None. The foot twists on.
Apple
Not affiliated with, or made by, Apple

What it is

The holder is a Mac mini at 80% scale, 101.8 × 101.8 × 43.2 mm, worked out from Apple's own photographs of the front, the back and the underside. The ports on the front and back are cut right through the wall. Behind them are the black edges of the coasters, which is what makes them read as ports rather than dents.

Each coaster is 96 mm square and 7.5 mm thick, with the same corner radius as the Mac mini, so the four of them drop in as one stack. There's a notch at the back for a finger, and the cap leaves a millimetre of air above the top key.

The round foot twists on, a bayonet with 0.2 mm all round, so there's no hardware and no glue. The first version locked with a 0.05 mm interference fit, which is a polite way of saying it didn't come off. This one does.

Nothing on the holder is printed over air. Every hole in a wall has a pointed roof and every overhang stays under 45°, so none of it needs supports. The coasters are the only two-colour part: the legends are inlaid flush, which means two filaments on the same layers.

What else is in the download

Coasters

The four coasters, 2 × 2. The 3MF has the legends in a second color, ready for an AMS. The STL and OBJ are single color.

198 × 198 × 8 mm · ≈ 125 g

Coasters - single color (no AMS)

Printed face down in one filament. Pause at 0.6 mm and change to Jade White, pause at 1.0 mm and change back to black. Legends are recessed 0.4 mm. The 3MF has both pauses set. Use instead of the coasters above.

198 × 198 × 8 mm · ≈ 118 g

Printing it

What we printed ours with. A starting point, not laws.

Layer height
0.2 mm on a 0.4 mm nozzle
Walls
2 perimeters
Infill
15%, grid
Supports
None, on any of it
Colours
Coasters: Black, with Jade White legends. With an AMS the legends are inlaid flush. Without an AMS, use the single-color coasters (two filament changes). Container and cap: Gray. Foot: Black. All Bambu PLA Basic.
Plates
Three. Coasters: 3 h 25 min, 125 g. Container and cap: 2 h, 72 g. Foot: 42 min, 19 g. Total about 6 h and 217 g (MakerWorld slice).

If your printer disagrees with any of this, trust your printer.

Filaments

  • Bambu PLA Basic Black (10101) Coasters and the foot Spool Refill
  • Bambu PLA Basic Jade White (10100) The legends Spool Refill
  • Bambu PLA Basic Gray (10103) Container and cap Spool Refill

On MakerWorld: the whole set for AMS, no AMS and the A1 mini, each coaster on its own, and the holder on its own. Plates, colors and settings are set up, and the three filaments are there as a Ready-to-Build Pack.
